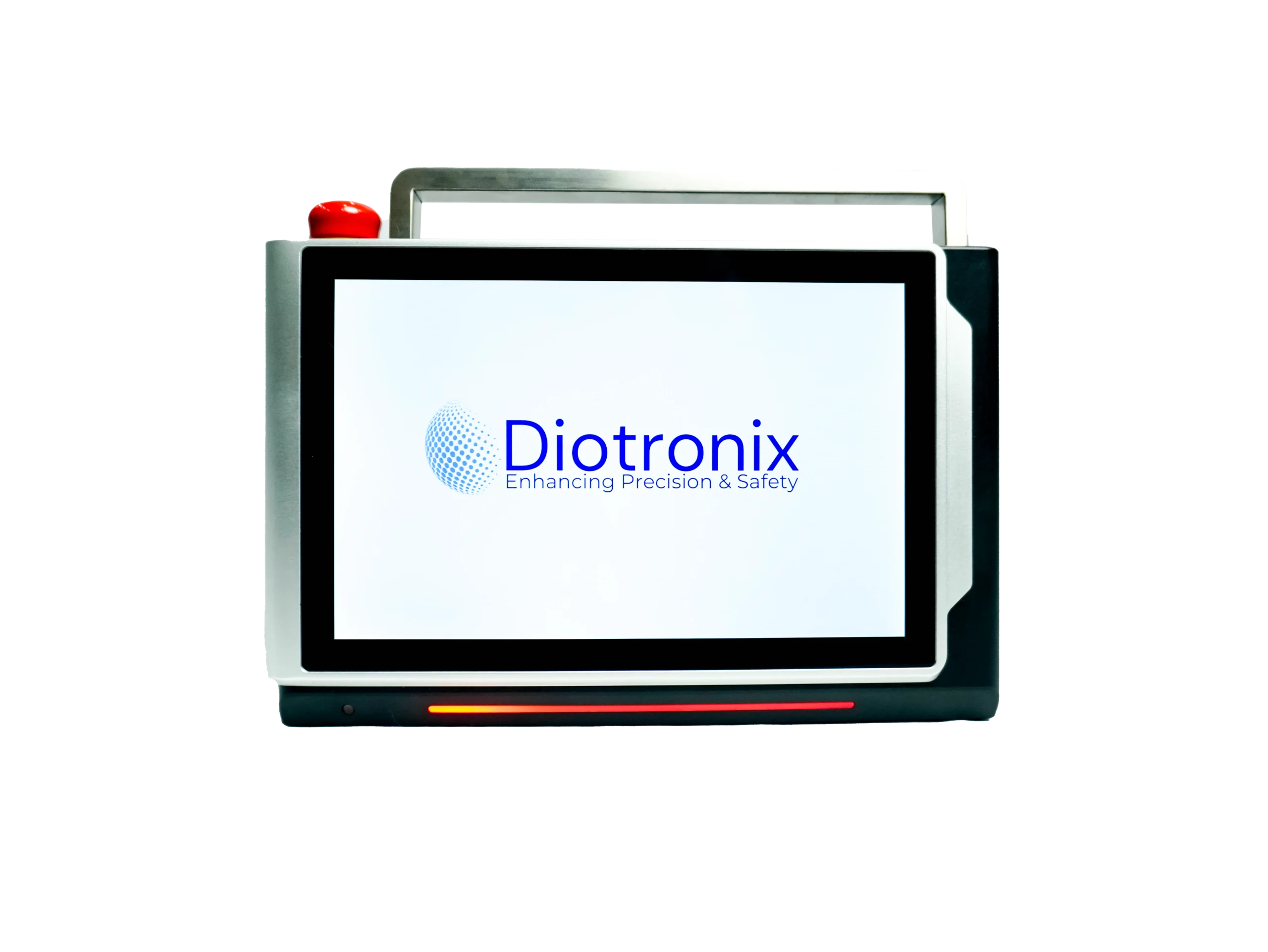

SDGS-502TL
Precision • Power • Performance

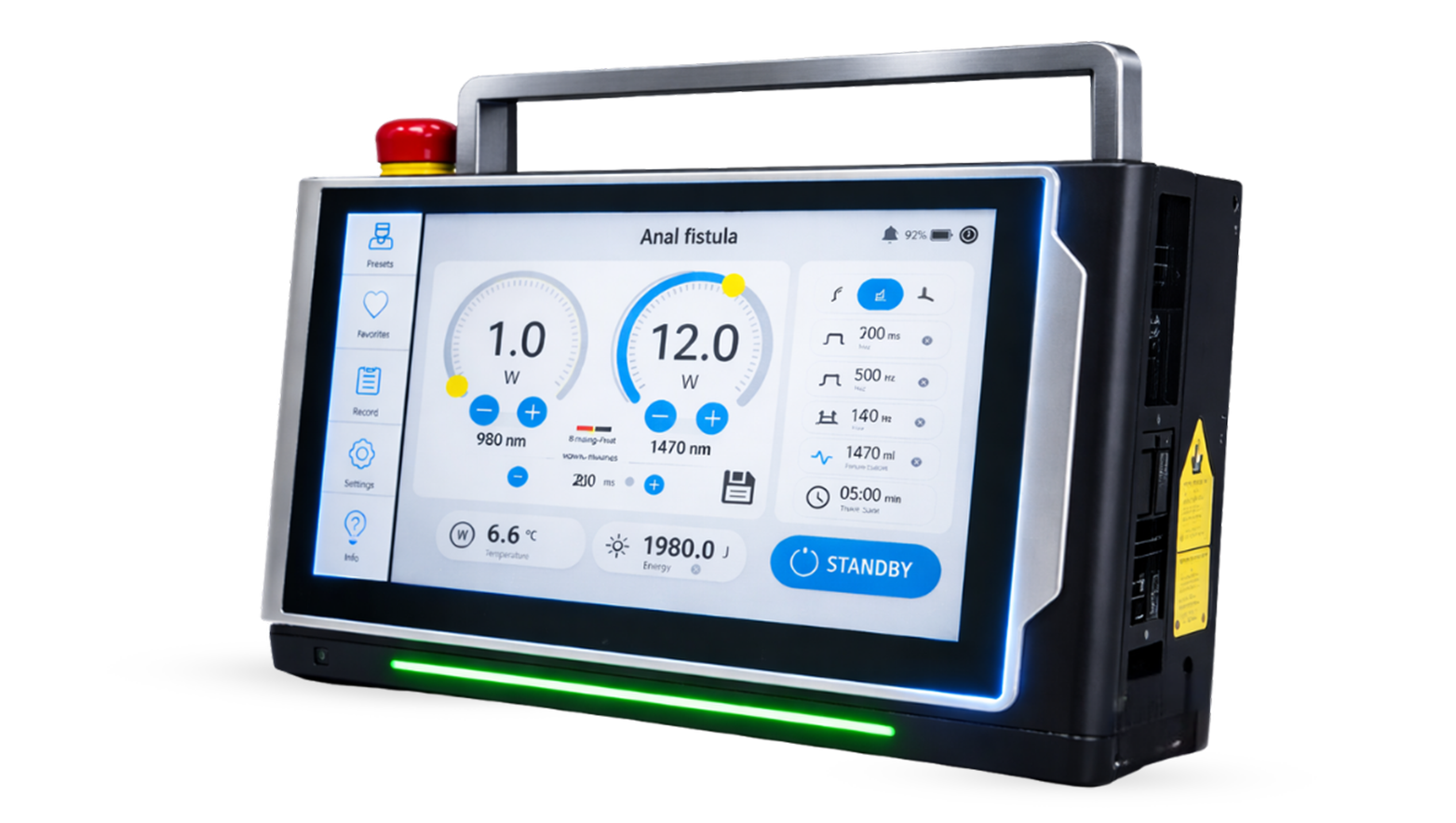

The Diotronix SDGS-502TL Surgical Diode Laser System is designed to deliver precise, minimally invasive treatment across multiple surgical specialties.
With powerful output, intelligent software, and a compact portable design, it provides doctors with reliable performance and improved patient outcomes.
Multi-Wavelength, High Power & Powerful Android OS Functions
- 50.2w Output Available
- A Safe And Effective Surgical Treatment Option
- Hardware-Based Oem Multi-Wavelength Combination Options 640nm/1470nm/980nm
- Software Controlled Output, Multiple Wavelength Output Simultaneously Or Individually
- Continuous 50w Output Available
- A Safe And Effective Surgical Treatment Option
- Stay Updated With Th Latest Features
- Create And Personalise Your Own Presets
- Quick Start Of Various Treatments
- Enhanced Client Trust
- Records Of Each Stage Of Patients Such As Date Time Power Total Joules Etc

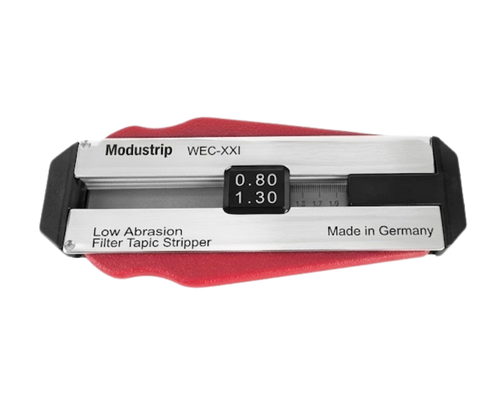

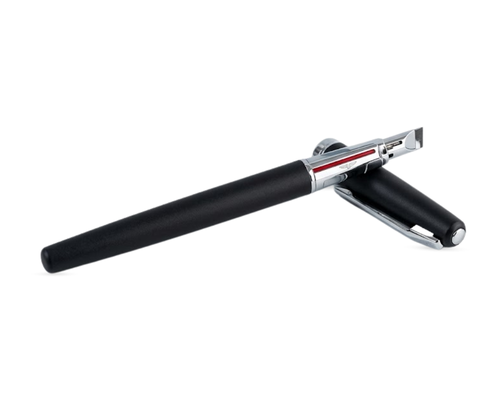

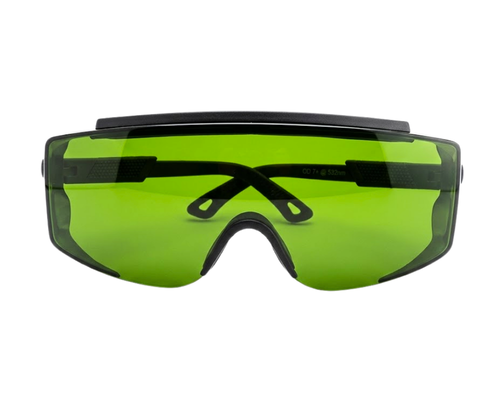

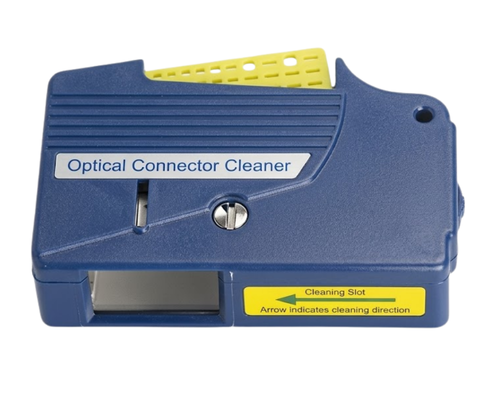

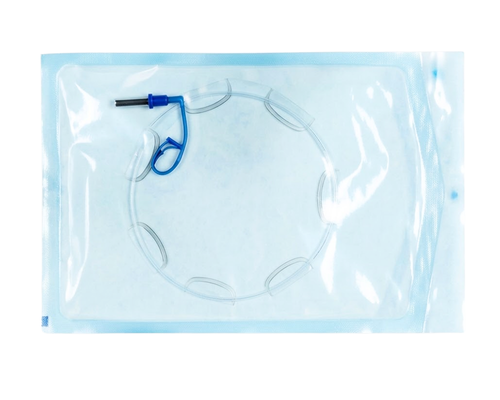

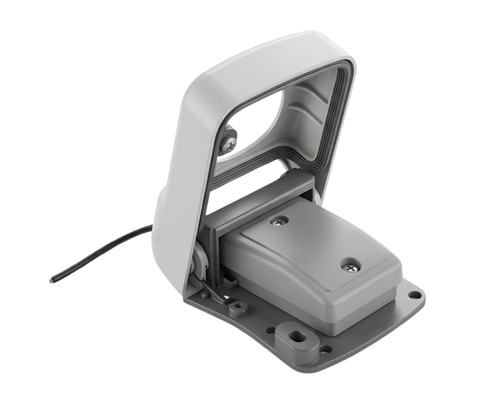

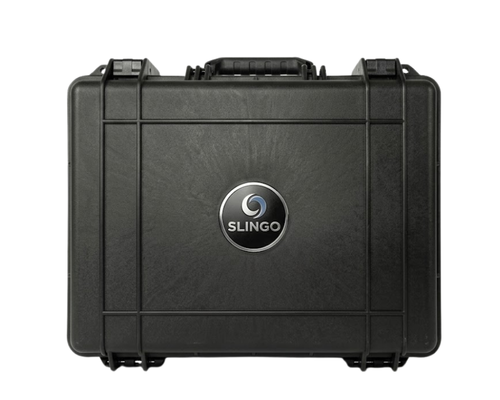

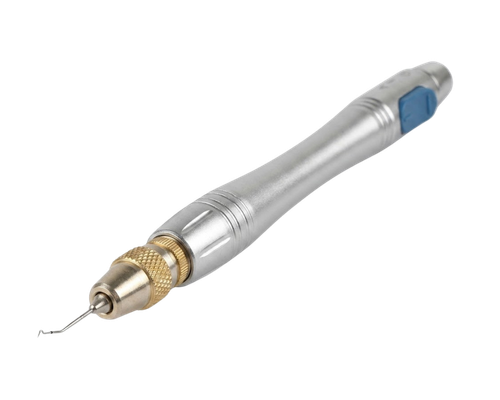

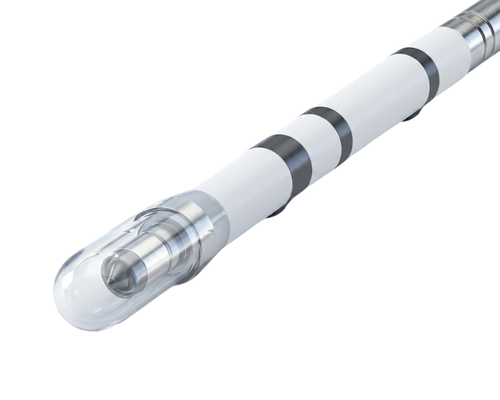

Accessories
Technical Specifications
| Specification | Details | ||
|---|---|---|---|
| Product Model | SDGS-502TL | ||
| Laser Type | GaAlAs Diode | ||
| Wavelength | 1470nm | 1470nm + 980nm | 1470nm + 980nm + 640nm |
| Power | 20W | 20W + 30W | 20W + 30W + 0.2W |
| Operation Mode | CW, Single or Repeat Pulses | ||
| Pulse Duration | 10us – 3s | ||
| Repetition Rate | 1Hz – 20KHz | ||
| Pilot Beam | 650nm, Power <5mw | ||
| Control Mode | High Resolution, 10.1 inch Touch Screen (1920 × 1200px) | ||
| Transmission System | Medical Fibers with SMA905 Connector | ||
| Dimension | 290(W) × 220(L) × 100(H) mm | ||
| Weight | 3.3 kg | ||
Upgrade your treatment protocols
with hands-on Diotronix training
Ready to Upgrade Your Surgical Precision?
Request a Callback
